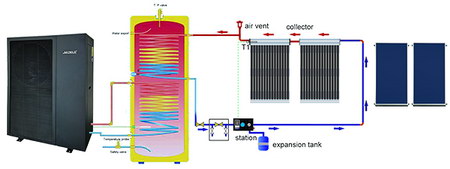

Heat pump and solar energy coubined tank Remark
1. The inner tank material:SUS304/316L stainless steel 1.2mm/1.5mm.2.The out tank: color steel 0.5mm or SUS304 stainless 0.4mm3.The heat insulation material: Polyurethane.
4.The thickness of the insulation:50mm/60mm
5.The use pressure: 6 bar.
6.The test pressure:10 bar.
7.The accessories:
a.electrical heater
b.the temperature and pressure relief valve.
c.the sensor.
d.standard equipped with SUS316L steel coil heat exchangere. the drain pipe.
8.The installation method: customized according to customer requirements ![]() |
![]() |
